To integrate with confluence, you need to create an Atlassian application that will act as a bridge between Zylon ↔ Confluence and configure Zylon to use the brand new Atlassian application

​
Create an Atlassian app

First you need an atlassian account that will be the owner of the application. We recommend to use a non personal account. This account does not need to have access to any Space as it will serve as a bridge between Zylon and Confluence.

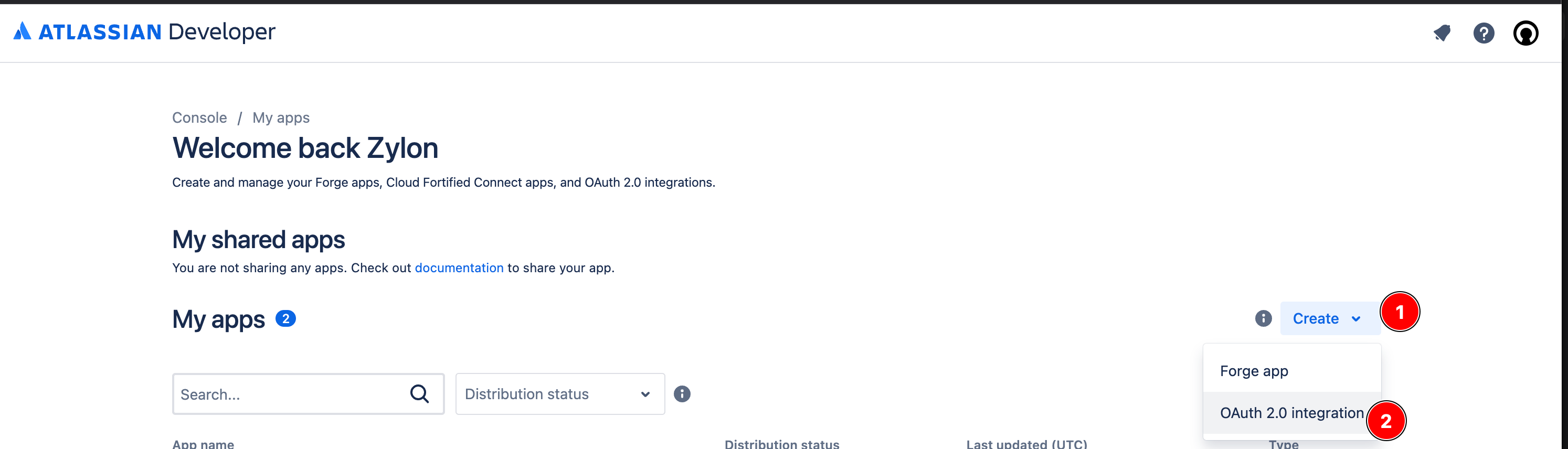

  1. Go to https://developer.atlassian.com/console/myapps/ Click Create → OAuth 2.0 integration
  1. Provide a meaningful name for the Application.
  1. On distribution:
    • In the left menu navigate to Distribution
    • Click on Edit
  1. On distribution status:
  • Select the Sharing checkbox.
  • Enter a vendor name or choose the option Use your own name.
  • If you have a privacy policy, provide the link to it. If not, use the default link: https://example.com/privacy, which is intended for internal use.
  • For the question “Does your app store personal data?”, select No
  1. On permissions:
  • In the left menu, navigate to Permissions.
  • Click Add for Confluence API.
  • The page refreshes automatically, and a new Configure button should appear. If it does not, refresh the page manually.
  • Click Configure.
image.png image.png
  1. Click Granual scopes and then on Edit scopes
  1. Add one by one the following permissions. You can search them pasting the values into the field with a magnifying glass. There needs to be a total of 10 scopes added that you can review before saving.
        read:content:confluence,
        read:content-details:confluence,
        read:space-details:confluence,
        read:page:confluence,
        read:attachment:confluence,
        read:blogpost:confluence,
        read:custom-content:confluence,
        read:space:confluence,
        read:space.permission:confluence,
        read:folder:confluence,
image.png image.png
  1. On authorization:
  • In the left menu, navigate to Authorization.
  • Click Add for OAuth 2.0 (3LO).
  1. In authorization:
  • In the Callback URL field, enter: https://zylon.company.com/api/app/integration/confluence/callbackReplace zylon.company.com with the hostname where Zylon is installed on your server.
  • Click Save changes.
  1. On settings:
  • In the left menu, navigate to Settings. Copy the two values listed under Authentication details:
    • Client ID
    • Secret
You will need these values for the next step: Configure Zylon to use Atlassian Application image.png

​
Configure Zylon to use Atlassian Application

With the values we have acquired in step 10, you need to edit Zylon config file located in /etc/zylon/zylon-conf.yaml
The config file is a .yaml file mind indentation, spaces, semicolons, double quotes!
Add the following snippet to the bottom of the file
integration:
  confluence:
    enabled: true
    clientId: ""
    clientSecret: ""
    redirectUri: ""
And fill the properties with the values generated previously:
  • clientId → value generated on step 10
  • clientSecret → value generated on step 10
  • redirectUri → same value as step 9
Save and close /etc/zylon/zylon-conf.yaml file Finally, execute the following command to reset Zylon and update the config
zylon-cli update
You are all set 🎉

​
Troubleshooting

​
I try to upload files to the knowledge base and Confluence button is greyed out

Clear the browser cache and try again.

​
When I click on Upload files -> From Confluence the log in is not working

  • Check that the clientId secretId are copy pasted correctly into Zylon config file
  • Check that the Callback URL is correct in step 9 and it’s the same as the redirectUri in the config file.

​
I don’t see any space to import

  • Make sure you have logged in into Confluence with an account that has access to spaces.
  • Check the permissions required are correct as shown in step 6
